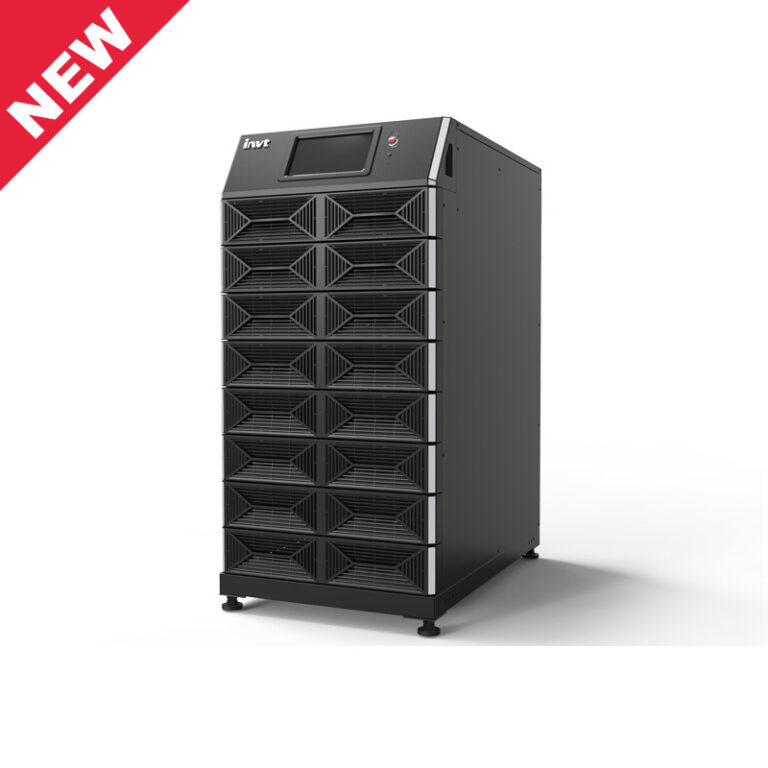

RM Series Rack-Mounted Modular Online UPS 5-20kVA (380V/400V/415V)
It’s a single-phase modular UPS that can be configured with up to 6 power modules(maximum 20kVA), 5 groups of battery modules, and optional 10A charging module. It can be flexible configured to 1 phase in and out without deration to satisfy various projects requirements, compatible with all kinds of 19” standard sever cabinet. The whole product is a complete tower modular UPS system, especially suitable for small and medium server rooms.

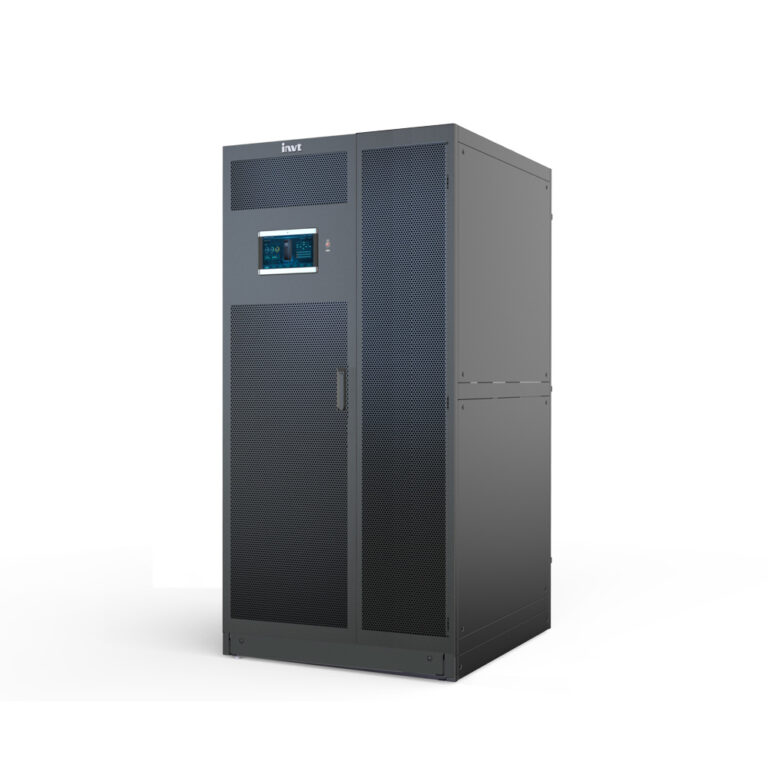

RM Series Modular Online UPS 25-600kVA (380V/400V/415V)
The series Modular Online UPS is high reliability and adaptability product for medium and large data center. The series is the upgrade of 20 – 200 kVA series UPS, and the capacity can be expanded to 900 kVA. It provides 150kVA, 180kVA, 250kVA, 300kVA, 500kVA, 600kVA for choosing. Modular IGBT design and isolated air channel ensured its high impact resistance and the wide adaptability of harsh environment.

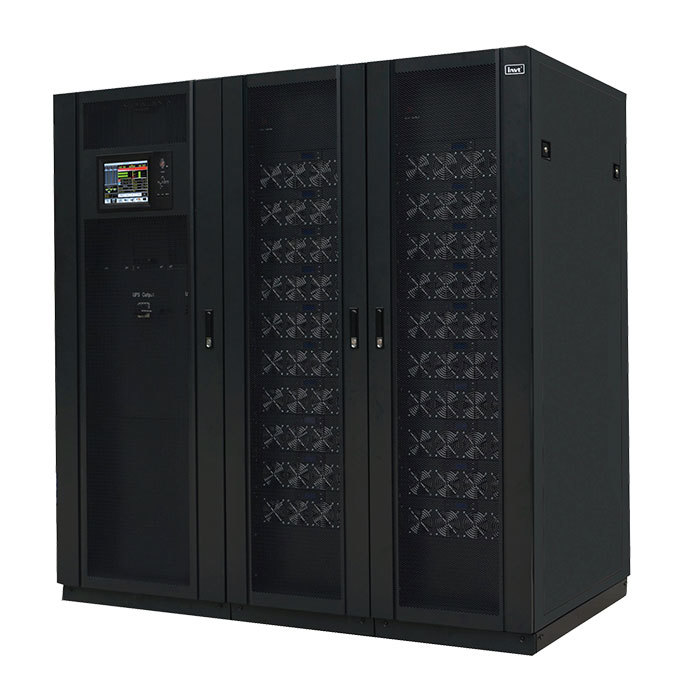

RM Series 100-600kVA Modular Online UPS(380V/400V/415V)
The modular online UPS, single cabinet power rating covers from 100kVA to 600kVA, provides the highest power density of 100kW power modules in 4U height, 4 units can be paralleled for capacity maximum up to 3.2MW. With the patent of Battery Neutral Free design, the RM series deliver the best combination of reliability, hot swappable and flexibility.

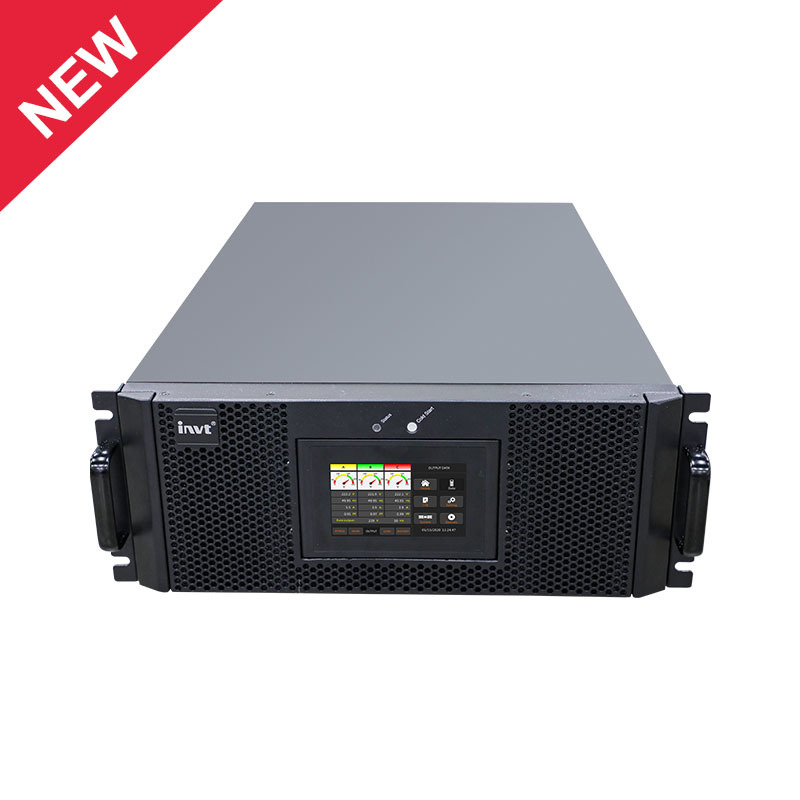

HR33 Series Rack Online UPS 30-40kVA (380V/400V/415V)
The HR33 Series Rack-mounted Online UPS adopts online double conversion design, based on DSP full digital control, to provide a stable and uninterrupted power supply for important loads, which can eliminate surges, instantaneous high voltage, instantaneous low voltage, and “Power pollution” such as wire noise and frequency offset, provide customers with high-efficiency and high-power-density power supply guarantees. the UPS can be plugged into the 19-inch standard server cabinet of the micro-module data center. The single cabinet has a capacity of 40kVA/40kW, and the system supports 4 parallel.

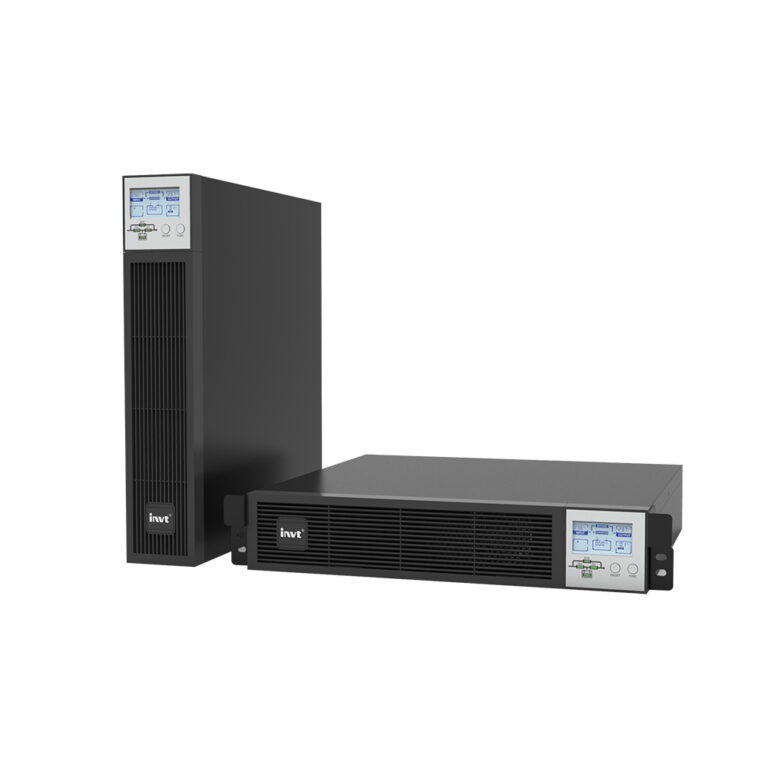

HRC11 1-3kVA Rack Online UPS (220V/230V/240V)
The main function of HRC11 1-3kVA Rack Online UPS is to convert AC mains power into pure sinusoidal power output, while the battery serves as a backup power source. Once the mains power fails, the battery will continue to supply power to the backend to ensure the load does not lose power within a certain period. It is mainly used in small server rooms.

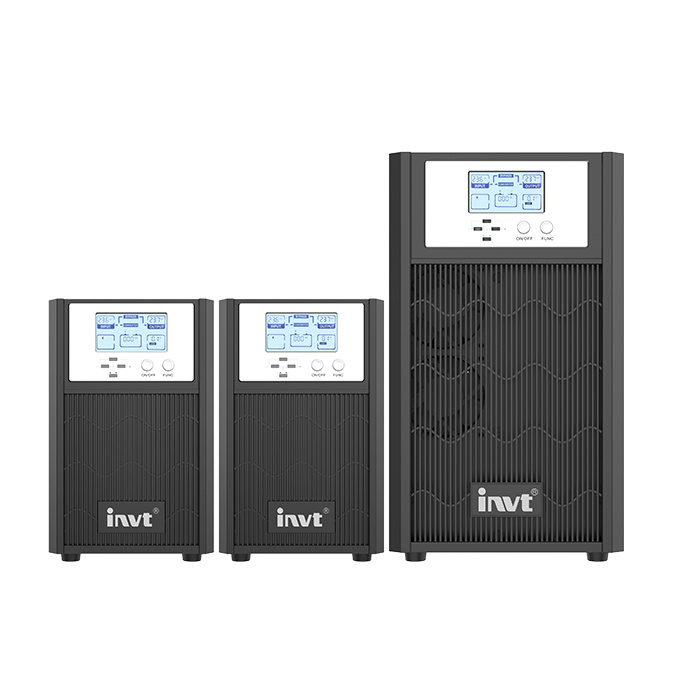

HTC11 Series Tower Online UPS 1-3kVA 2.0 (220V/230V/240V)
This series tower UPS is the 2.0 version of HT11 1-3kVA, which is to meet the requirements for energy conservation and emission reduction of the markets, compared with the old one, it has a smaller size, better performance, and more competitive price and quality! its power ranges from 1kVA to 3kVA, This product can be widely used, such as small data centers, bank branches, telecom business halls, office buildings, and various edge computing scenarios.
INVT UPS & Battery Calculator
UPS Sizing & Selection
Battery Sizing (Series & Parallel)
Formula: Required Energy (Wh) = Load (W) × Time (h) ÷ (η × DoD).
Energy per string = Bus Voltage × Ah.
Parallel strings = ⌈Required Energy ÷ String Energy⌉.
Batteries per string = Bus Voltage ÷ Battery Voltage.
Electrical Conversions
Power
Voltage / Current
Energy
Smart Power Module UPS System
Power Module UPS systems are designed to deliver flexible and scalable power solutions, allowing you to tailor the capacity precisely to your needs. This ensures maximum efficiency while minimizing unnecessary costs and energy waste.
With this intelligent tool, you’ll receive the best automatic recommendation based on your required load — saving you time, effort, and guesswork.
